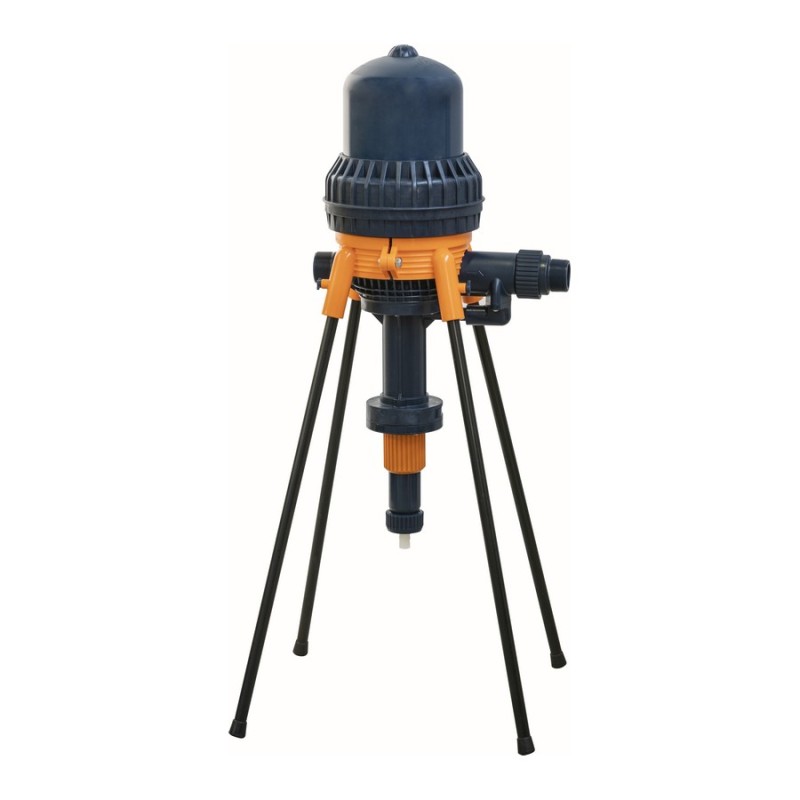

Dosing pump MIXTRON.1300.P055 VITON BYPASS

MIXTRON MX.1300.P055 VITON BYPASS is a proportional volumetric doser suitable for mixing liquids in various fields of application.

Its Bypass system allows the engine not to be affected by any chemical agent.

It has a variable flow rate from 10 l / h to 13000 l / h.

Dosage: 0.5 – 5%

Easily adjustable dosage ratio, no motor, powered only by water.

Dosing ratio 0.5 - 5 %

Max water flow 13000 l/h

Plastic components POM, PP, HDPE, PA12

Metal components AISI 316, Duplex SealsViton, EPDM

Operating pressure 0,3 - 8 bar

Max static pressure 10 bar

Temperature 5° - 40° C

Weight 20 kg

Dimensions 120 × 40 × 40 cm

Package Contents: 1 Mixtron Dosing Pump with user manual 1 fixing bracket 1 1.5 meter suction pipe 1 filter 1 Sector key kit for bell 9.5-13 m3 / h
