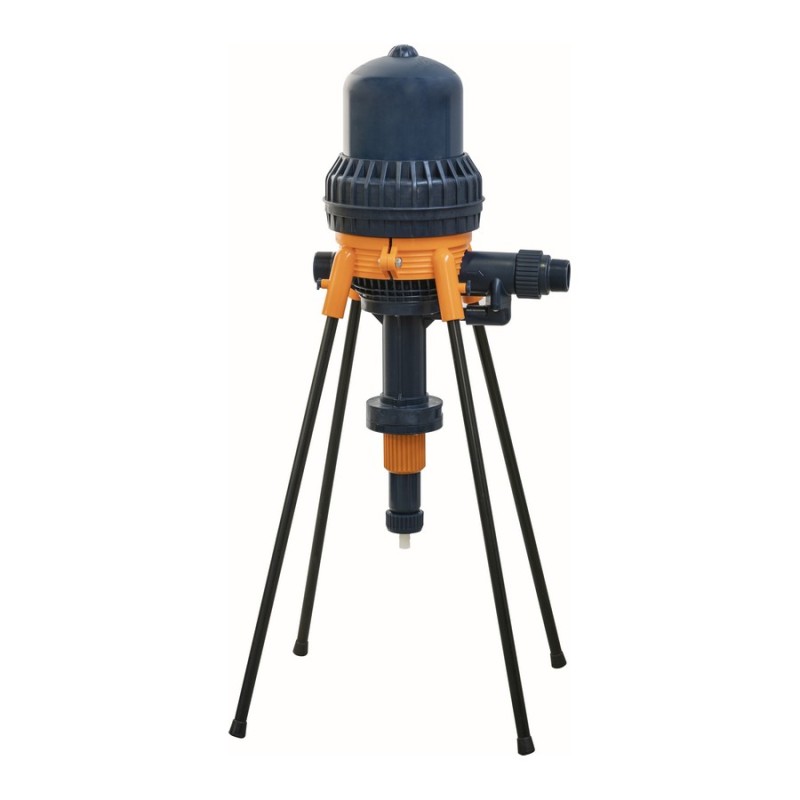

Dosing pump MIXTRON.1100.P055 EPDM BYPASS

MIXTRON MX.1100.P055 EPDM BYPASS is a proportional volumetric dosing pump suitable for mixing liquids for a broad range of applications.

It has a variable flow rate from 10 l / h to 11000 l / h.

Dosage: 0.5 – 5%

Easily adjustable flow rate, no engine, powered only by water.

Dosing ratio: 0.5 - 5 %

Max water flow: 11000 l/h

Plastic components: POM, PP, HDPE, PA12

Metal components: AISI 316,

Duplex SealsViton, EPDM

Operating pressure: 0,3 - 8 bar

Max static pressure: 10 bar

Temperature: 5° - 40° C

Weight: 20 kg

Dimensions: 120 × 40 × 40 cm

Package Contents: 1 Mixtron Dosing Pump with user manual 1 fixing bracket 1 1.5 meter suction pipe 1 filter 1 Sector key kit for bell 9.5-13 m3/h
