High pressure nozzle, 1/8", 31.0mm, angle up to 110º

€32.07

Tax included

1/8" high-pressure nozzle from the Cool Line System, featuring up to 110º angle and 31mm length. Designed for industrial applications requiring precise cooling and compatibility with various viscosity lubricants.

Quantity

Request a quote Chat on WhatsApp

Security

100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal

Fast and guaranteed delivery

We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.

Return policy

Exchange or refund guaranteed according to legal standards and for defective products.

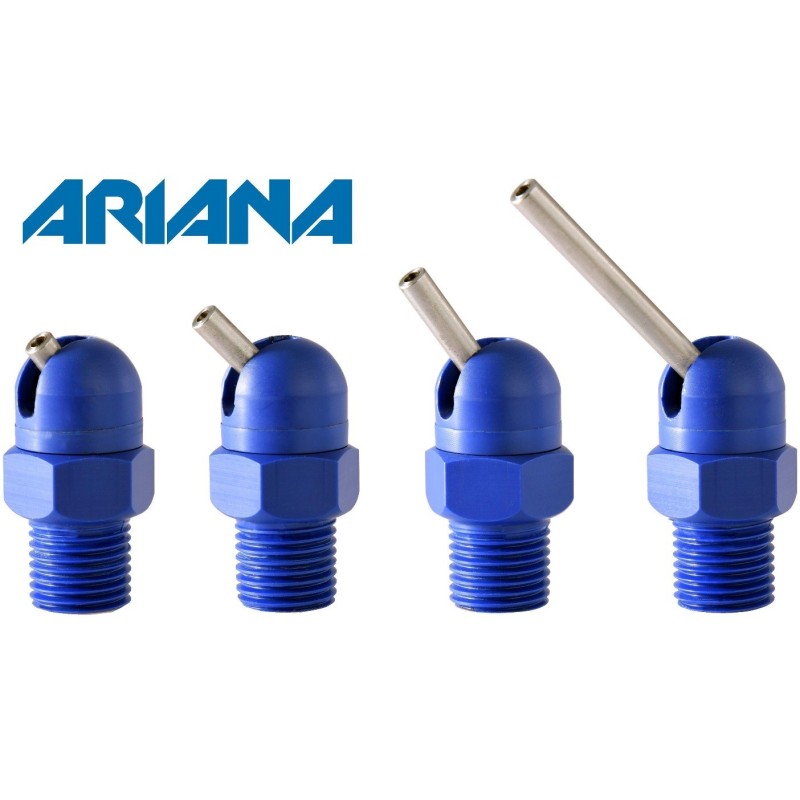

New 1/4" and 1/8" high pressure nozzles in different hole diameters and pipe lengths with a positioning angle of up to 110°. • 1/4" nozzles, item ref. 0211736 to 0211750 • 1/8" nozzles, item ref. 0211720 to 0211734 • Pipe diameter: 1.5 mm, 2.0 mm and 3.0 mm • Pipe length: 1.0 mm, 6.0 mm, 12.5 mm and 31.0 mm Application area and operation Ariana compact high pressure nozzles are tested at 90 bar with an angle of up to 110°. The nozzles can be installed in any assembly in a space-saving manner. Available with 1/8" and 1/4" connector. Nozzle ID diameter 1.0, 2.0, 3.0 as well as tube lengths of 1.0, 6.0, 12.5, 31.0 mm. The injectors feature a hexagon head with BSPT thread and can be easily adjusted with a pin in the nozzle core. • High pressure cooling up to 90 bar • Impingement angle up to 110° • 360° rotatable nozzle • Case manufactured from high-quality plastic granules
