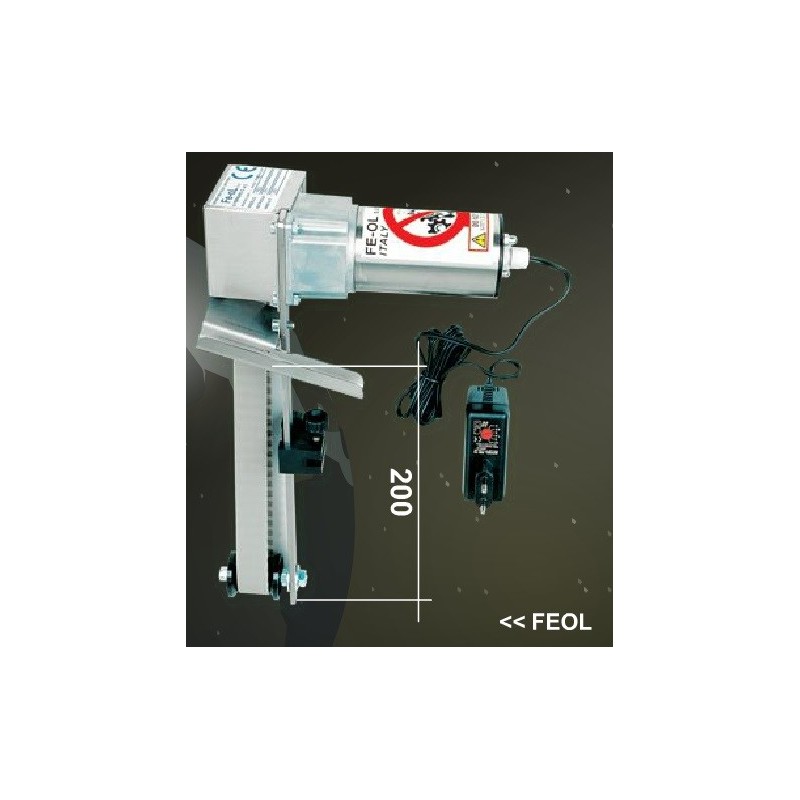

OIL SEPARATOR 25 (FE-OL), 200mm

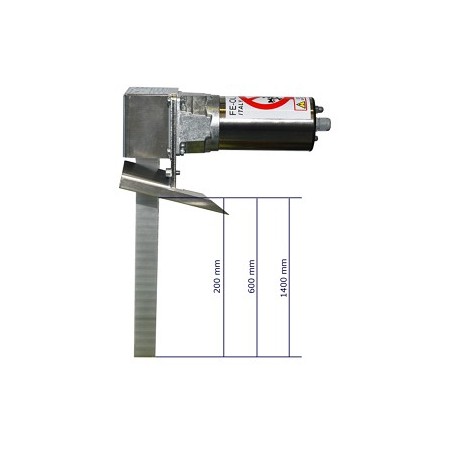

Vanishing Oil separator with its polyurethane belt 25 mm wide. It is recommended for lathes and milling machines with cooling tanks containing up to approx. 2000 liters. Work at a maximum temperature of 50 º. Its extraction capacity is 1.5 liters / hour. The best results are obtained when operating at 4.5 volts FEOL approx. 6 rounds / min. The FEOL is manufactured in three versions, with lengths using 200, 600 and 1400 mm. Intermediate steps can be supplied on demand.

FEOL has conceived an easy-to-use system to separate lubricating oils from watery emulsions that get mixed in the trays of cnc tools machines or in centralised trays, bringing about various problems such as bad smells, deterioration of emulsion and/or skin irritation. These problems mean the machine has to be stopped frequently in order to replace the emulsion, thus leading to higher operating costs.

OPERATING INSTRUCTIONS

Check that there are no extraneous objects blocking the belt. By means of the special clamp, fasten the FEOL device to the trays from which the oil is to be removed; for the MAXI FEOL, use the clasp supplied. A tray should be placed alongside to collect the oil thus drawn off. Connect-up to the mains power supply. Make sure that it rotates the correct way.

POWER SUPPLY

Voltage rating: from 100V to 250V - 50 Hz 18W.

Speed settings with potentiometer: 3 - 4.5 - 6 - 7.5 - 9 - 12 volts.

BELT

For FEOL: Polyurethane belt - max. temperature 50º

For MAXI FEOL: Kevlar chain - max. temperature 100º

MECHANICAL PARTS

The structure is in 100% stainless steel with dustproof protection for the motor wiring.
