MIXTRON - Proportional dosing pumps

MIXTRON range and applications

Proportional dosing for much more than fertigation

MIXTRON combines water-powered volumetric dosing pumps with a separate high-pressure pump family. Proportional dosing serves metalworking and process fluids, livestock, irrigation and fertigation, vehicle washing, water treatment, cleaning and disinfection.

  • 750–13,000 l/h across the dosing range
  • Model-specific ratios from 0.03–10%
  • Technical selection before ordering

Six application sectors

Metalworking & process

Proportional preparation or replenishment of compatible fluids.

Livestock

Water-line dosing for animal-production applications.

Irrigation & fertigation

Fertiliser and nutrient injection in correctly sized systems.

Vehicle washing

Chemical dosing and professional washing duties.

Water treatment

Proportional addition of compatible treatment products.

Cleaning & disinfection

Professional processes selected from the product and conditions.

Two families, different functions

Proportional dosing pumps

Water flow drives the unit, which draws concentrate and adds it proportionally within the model's operating limits, with no external electrical supply at the dosing point.

High-pressure pumps

They generate pressurised water flow for professional duties. They do not replace a dosing pump and are selected from the required pressure, flow and duty cycle.

View high-pressure pumps

The figures describe the complete family, not one pump. Selection requires the liquid and concentration, minimum and maximum flow, pressure, temperature, materials and installation arrangement.

MIXTRON Dosing Pumps | 750–13,000 l/h Range

Subcategories

  • Dosing pump 750 L/H
    Dosing pump 750 L/H

    MIXTRON dosing systems with capacity up to 750 liters/hour. Perfect for small installations, workshops and applications requiring precise low-scale dosing.

    Dosing ranges: 0.03% - 10%. Materials: VITON for maximum chemical resistance.

  • Dosing pump 1500 L/H
    Dosing pump 1500 L/H

    MIXTRON dosing systems with capacity up to 1,500 liters/hour. Ideal for medium production lines, cooling systems and cutting fluid mixing.

    Dosing ranges: 0.03% - 10%. Available in VITON and EPDM depending on application.

  • Dosing pump 2500 L/H
    Dosing pump 2500 L/H

    MIXTRON dosing systems with capacity up to 2,500 liters/hour. Designed for medium-large industrial facilities with high fluid consumption.

    Dosing ranges: 0.03% - 10%. Robust construction with VITON seals for aggressive chemicals.

  • Dosing pump 3000 L/H
    Dosing pump 3000 L/H

    MIXTRON dosing systems with capacity up to 3,000 liters/hour. For large industrial facilities, mixing stations and high-demand cooling systems.

    Dosing ranges: 0.03% - 10%. BYPASS versions available for greater flexibility.

  • Dosing pump 5000 - 9000 L/H
    Dosing pump 5000 - 9000 L/H

    High-capacity MIXTRON dosing systems: 5,000 to 9,000 liters/hour. Solutions for large industrial plants, centralized cooling systems and high-volume processes.

    Reinforced industrial construction. Ideal for 24/7 continuous operation environments.

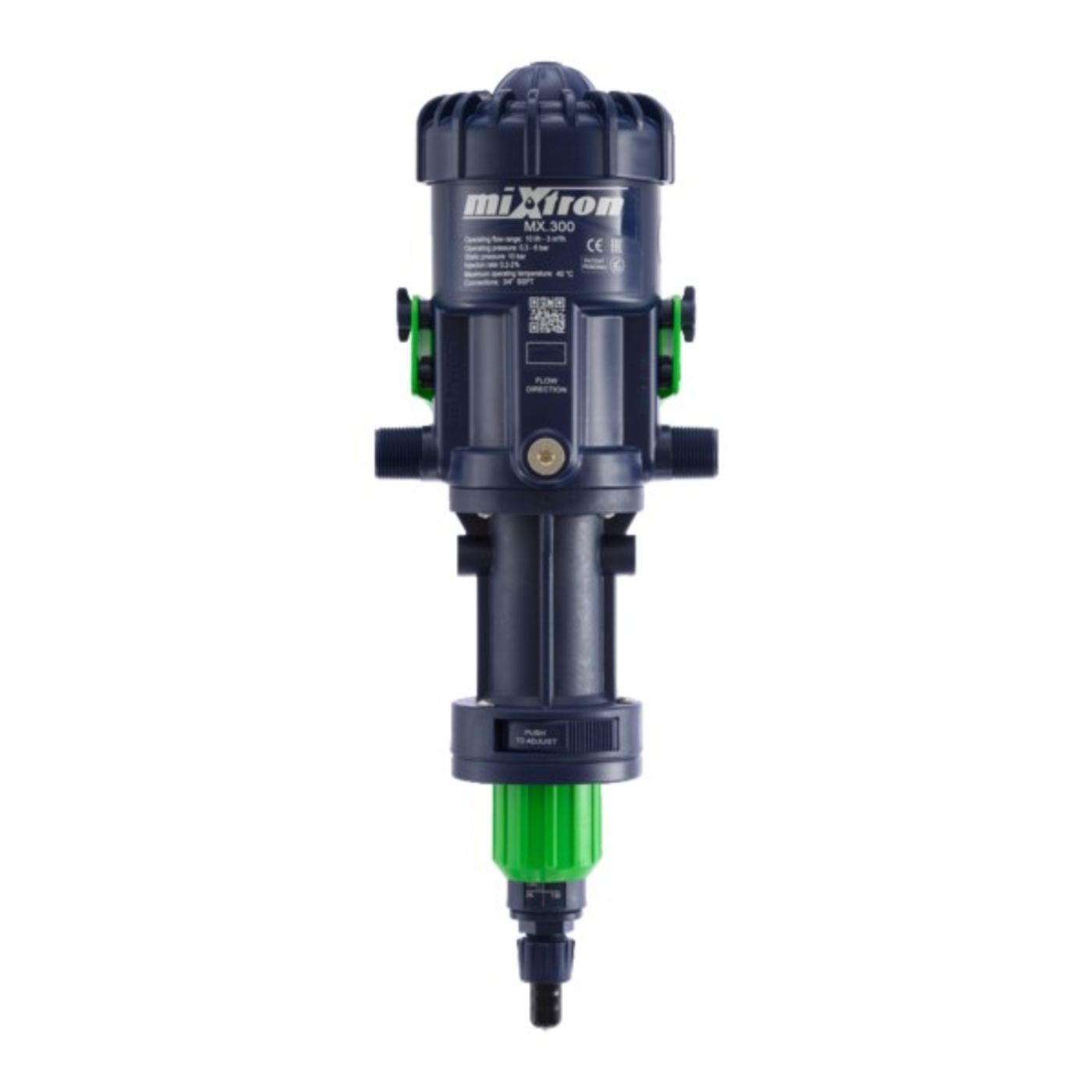

  • Dosing pump 9500 - 1300 L/H
    Dosing pump 9500 - 1300 L/H

    Maximum capacity MIXTRON dosing systems: 9,500 to 13,000 liters/hour. The most powerful range for the highest industrial demands, automotive plants and large mixing stations.

    Maximum performance and reliability. Designed for the most demanding applications.
