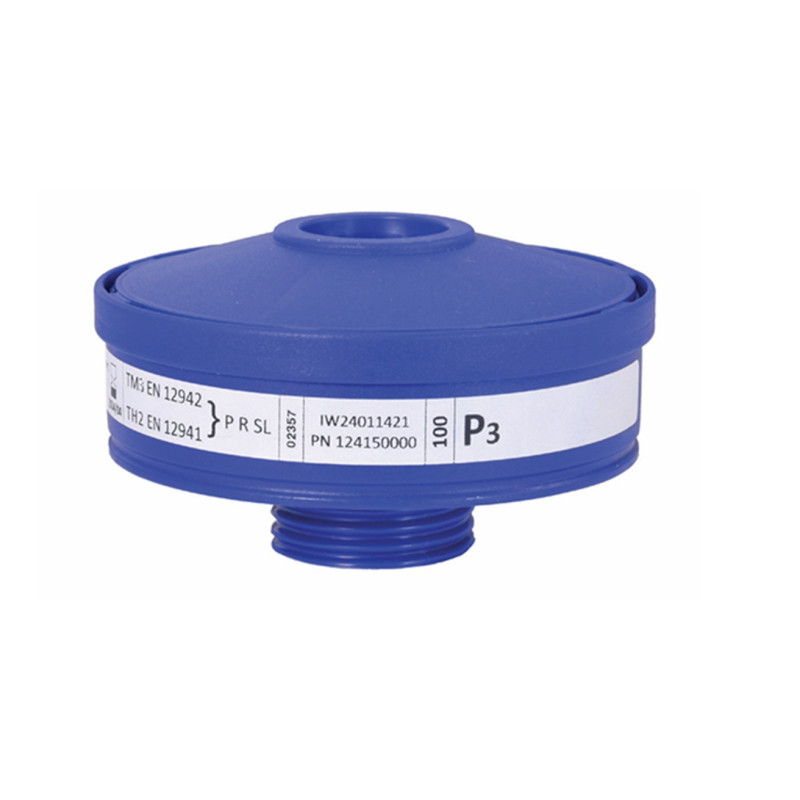

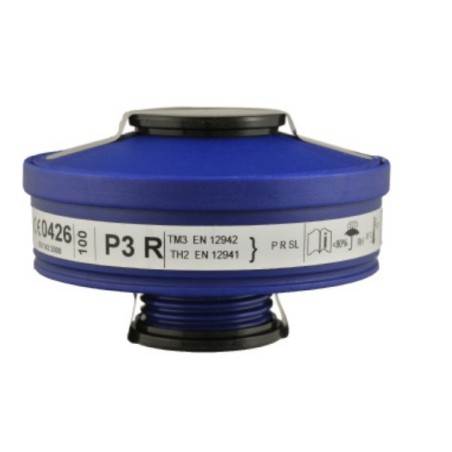

Particle filter with standard thread connection according to EN 148-1 standard, for dusts, fumes, mists. 100 P3 R. Box 4units

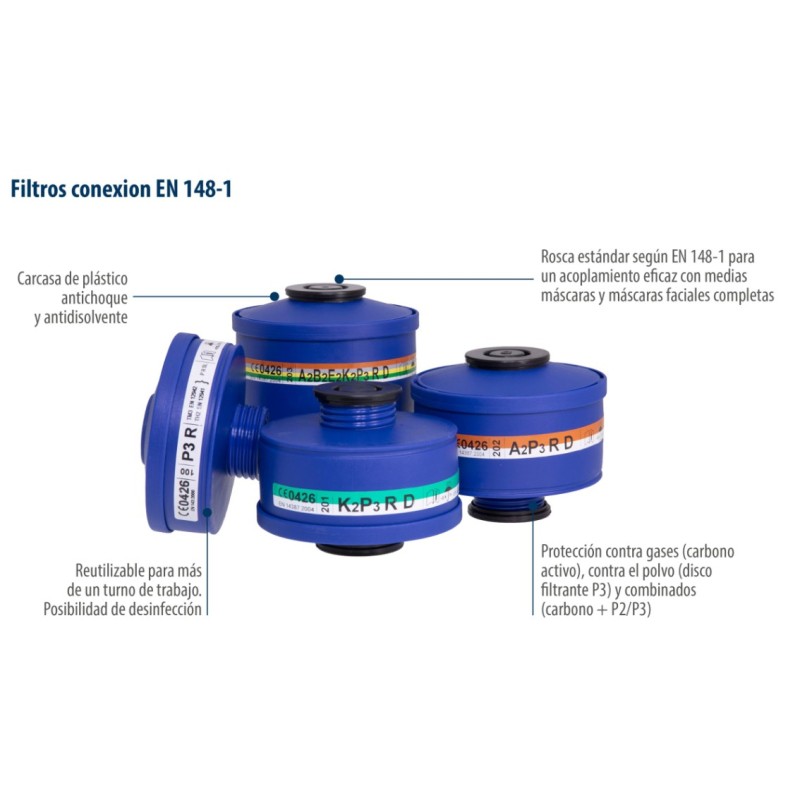

Standardized EN 148-1 threaded dust filter for particles (dust, fumes, and mists)

The filter can be used with full-face masks TR 82, TR 2002 CL2, and TR 2002 CL3, half-mask ST85, or similar, equipped with EN 148-1 thread.

The filter can also be used with the powered air-purifying respirator (PAPR) Turbine 1708 and 1702 equipped with full-face masks and Turbine CFU, FU, H equipped with helmets and hoods, which have passed compliance tests according to EN 12941 and 12942 standards.

TECHNICAL INFORMATION

Test according to EN 143 standard

Breathing resistance

• Inhalation at 30 l/min (requirement <1.2 mbar): 0.8 mbar
• Inhalation at 95 l/min (requirement <4.2 mbar): 2.3 mbar
• Inhalation at 95 l/min after clogging (requirement <7.0 mbar): 3.3 mbar

Test according to EN 12942 standard

Breathing resistance (filter used with PAPR Turbine with full-face mask)

• Inhalation at 20 cycles/min x 1.5 l/stroke, ventilation off (requirement <11 mbar): 1.8 mbar
• Inhalation at 20 cycles/min x 1.5 l/stroke, ventilation off, after clogging (requirement <11 mbar): 2.3 mbar
• Inhalation at 25 cycles/min x 2 l/stroke, ventilation on (requirement <3.5 mbar): 0.2 mbar
• Inhalation at 25 cycles/min x 2 l/stroke, ventilation on, after clogging (requirement <3.5 mbar): 0.3 mbar
• Exhalation at 25 cycles/min x 2 l/stroke, ventilation on (requirement <7 mbar): 4.6 mbar

Usage limits

Do not use in environments with oxygen concentrations below 17% by volume (values may differ in your country, also check your local legislative requirements) and in the presence of gas and/or vapors. The filter is reusable.

CLASSIFICATIONS

• Filter compliant with the provisions of PPE Regulation 2016/425/EU as category III PPE
• Class P3 dust filter according to EN 143:2021 standard
• The filter also complies with EN 143:2000/A1:2006 for performance requirements.
• Identification label color: white.
• Class P R SL dust filter according to EN 12941:1998+A2:2008 and EN 12942:1998+A2:2008 standards (PAPR with full-face mask or helmets and hoods). TM3 A1B2P R SL.
• The complete Turbine device with helmets or hoods (Turbine CFU, FU, H) with 100 P3 filters is classified as TM3 P R SL.
• The Turbine device with full-face mask (Turbine TM 1702 and TM 1708) with 100 P3 filters is classified as TH2 P R SL. Identification label color: white

Identification label color: white

CE MARKING

MATERIALS

Case: Polypropylene

Filter material: filter paper

STORAGE

Store at a temperature between -20 and +50ºC and with relative humidity below 80%.

WEIGHT 90 g approx.

Maximum diameter: approx. 106 mm

Height including thread: approx. 62 mm

Connection: standard connection according to EN 148-1:2018

PACKAGING

The filter is supplied in a box of 4 units with the following dimensions: 220x220x90 mm.

EXPIRATION

The filter, properly stored in its original packaging, has a shelf life of ten years from the production date. The expiration date is indicated on the filter label and its packaging.
