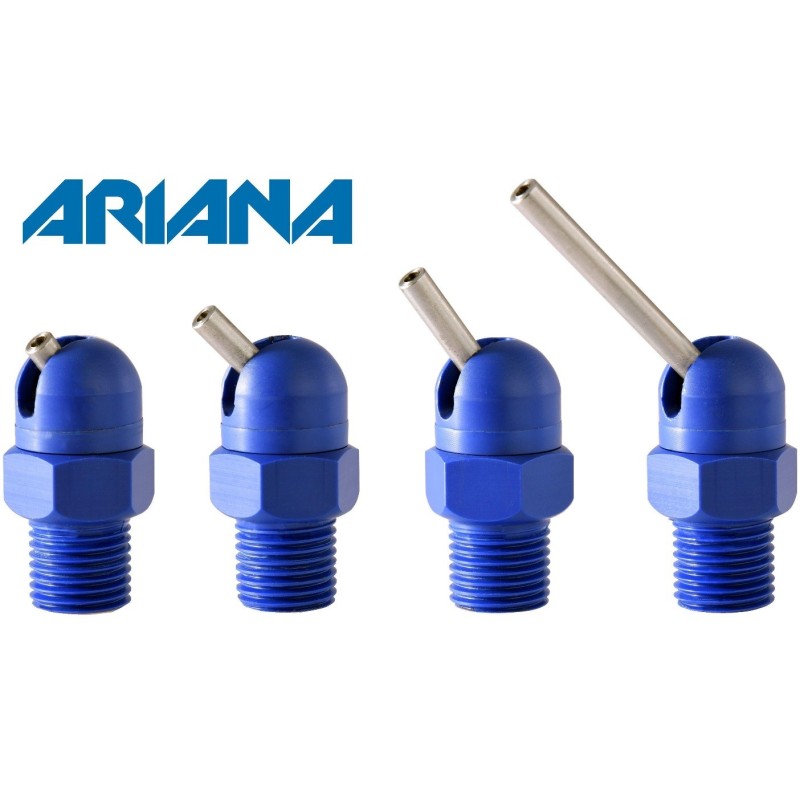

High pressure nozzle, 1/4", 31.0, angle up to 110º

€32.07

Tax included

1/4" High-pressure nozzle from the Cool Line System features an adjustable angle up to 110º, designed for industrial applications requiring precise cooling and compatibility with high-viscosity lubricants.

Quantity

Request a quote Chat on WhatsApp

Security

100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal

Fast and guaranteed delivery

We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.

Return policy

Exchange or refund guaranteed according to legal standards and for defective products.

New high pressure nozzles 1/4" and 1/8" in different hole diameters and pipe lengths up to 110° positioning angle. • Nozzles in 1/4" item ref. 0211736 to 0211750 • Nozzles in 1/8" item ref. 0211720 to 0211734 • Pipe diameter is 1.5 mm, 2.0 mm and 3.0 mm • Pipe length 1.0 mm, 6.0 mm, 12.5 mm and 31.0 mm Application and operation area Ariana compact high pressure nozzles are tested at 90 bar and an angle of up to 110°. The nozzles can be installed in every assembly in a space-saving manner. Available with 1/8" and 1/4" connector. Nozzle ID diameter 1.0, 2.0, 3.0 as well as in tube lengths of 1.0, 6.0, 12.5, 31.0 mm The injectors have a hexagon with BSPT thread and can be easily adjusted with a pin in the nozzle core. • High pressure cooling up to 90 bar • Imposition angle up to 110° • 360° rotatable nozzle • Case manufactured from high-quality plastic granules
