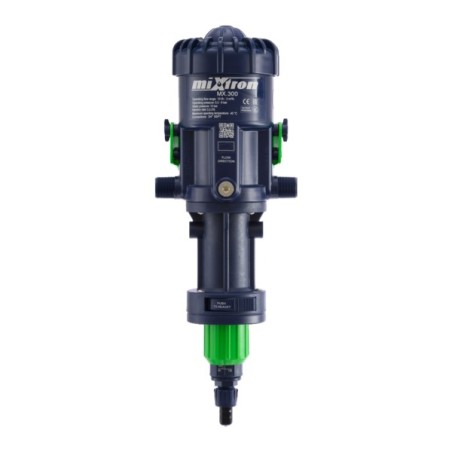

MIXTRON Doser 750l/h 1 - 10 % - VITON special for Cutting Fluids

Maximum quality in all mechanical processes, such as tool life and correct wear, begins with calibrated lubrication and cooling in all phases. The use of our doser connected to the water network, for the supply of water necessary for the preparation of the lubricant-coolant solution and the tank (or to the lubricating oil supply line), is the only method capable of guaranteeing a perfect and constant supply of the mixture correctly dosed at the required percentage to obtain maximum quality. No other method used for the preparation of the lubricant-coolant liquid can guarantee the same performance. * EASY AND FAST INSTALLATION * HYDRAULIC FEED * SIMPLE MAINTENANCE Box contents: • 1 Mixtron Doser (H 455 x L 165 x Ø 125 mm) • 1 fixing bracket • 1 reinforced suction tube of 1.5 m • 1 check valve and stainless steel filter • 1 user manual Technical specifications: Working pressure 0.3 - 6 bar Minimum water temperature 5 °C [41 F°] Maximum water temperature 40 °C [104 F°] Maximum suction height 4 m [13 ft] Maximum suction distance 20 m [66 ft] Connection thread ¾'' BSP Integrated mixing chamber INOX AISI 316 ball inlet valve Metallic components in AISI 316 stainless steel Special for cutting fluids STANDARD * Vent plug * Fixing bracket * Unlocking of the adjustment nut
