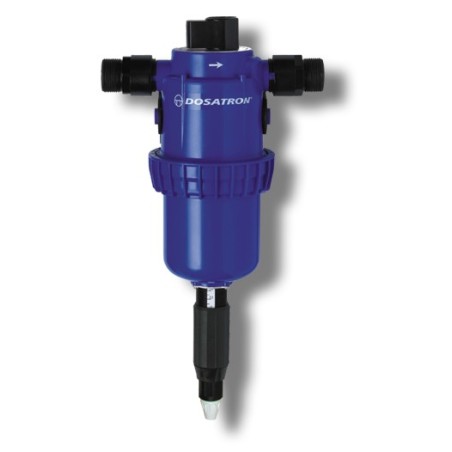

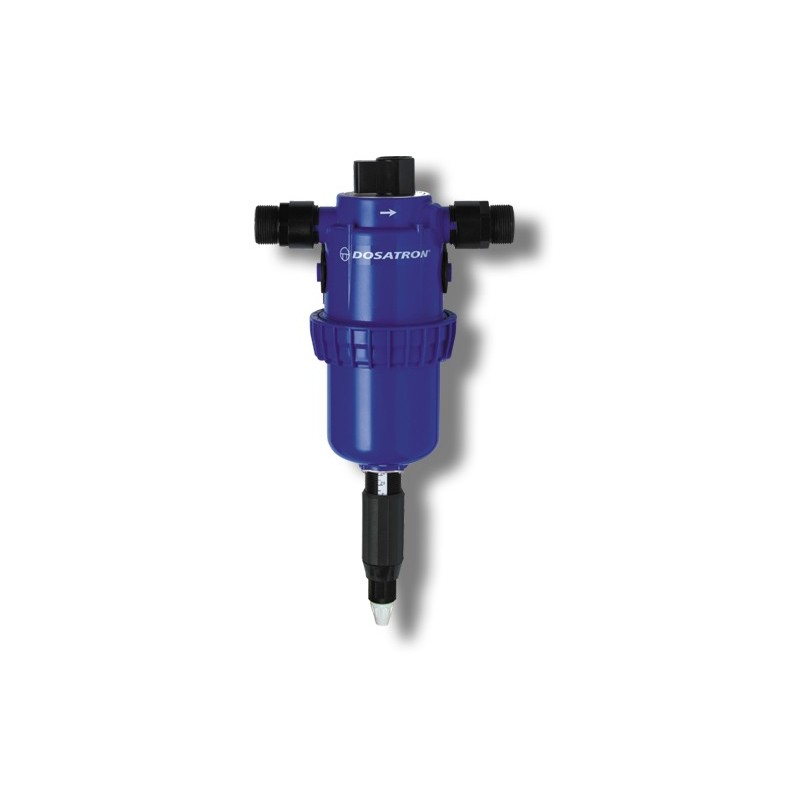

Doser 5D3RE10VF - Series D3 3 m3/h - 10 l/h min - 1-10%
€1,039.65tax excl.VAT incl.: €1,257.98
Tax excluded
DOSATRON DOSER SERIES D3 (dosing 1-10% 6 bar)
VF Seals: Dosing seals recommended for acidic products.
Security
100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal
Fast and guaranteed delivery
We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.
Return policy
Exchange or refund guaranteed according to legal standards and for defective products.
Dilution Range:
1:33 to 1:10 (3% to 10%)
Flow Range:
0.05 to 8.8 GPM (0.19 to 41.7 LPM)
Pressure Range:
4.3 to 58 PSI (0.3 to 5.9 BAR)
Body Materials:
• Polyacetal (blue)
• PVDF (white)
Other Options:
Side injection
Dimensions:
14" x 6 1/4"
Weight:
4 lbs (1.8 kg)
Connection Size:
3/4"
Max Temperature:
104ºF (40ºC)
Included Accessories:
6 ft suction tube, mount, filter at end of suction tube, operation manual
Recommended Accessories:
Check valve, 200 mesh water filter, pressure regulator, flow restrictor.
-5D3RE10VF
Data sheet
- Product Type
- Proportional dosing pump
- Maximum flow rate (m³/h)
- 3
- Dosing range
- 1% - 10%
Specific References
- EAN13
- 8435581616203
