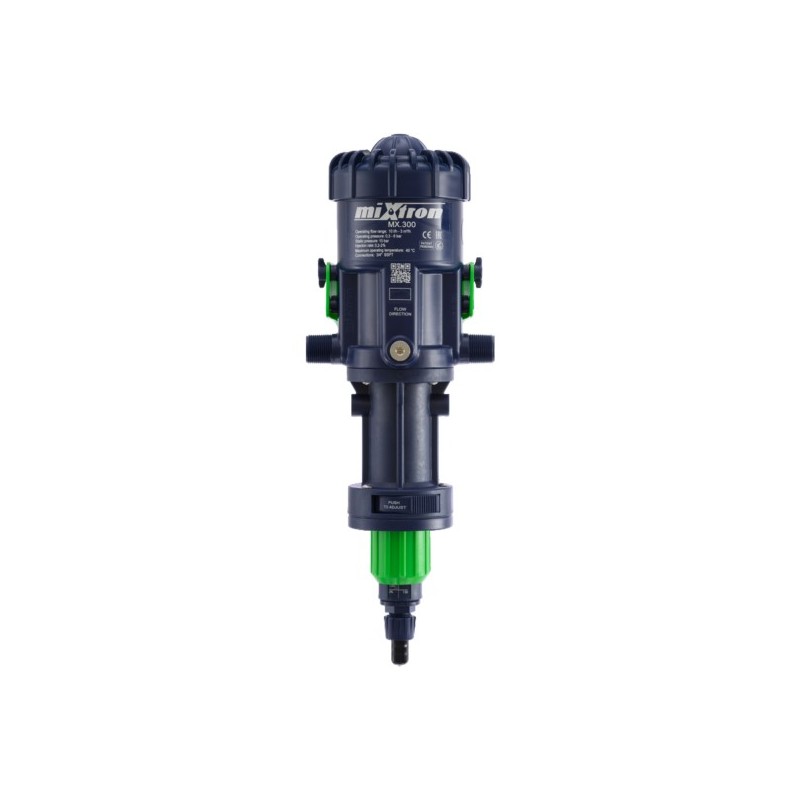

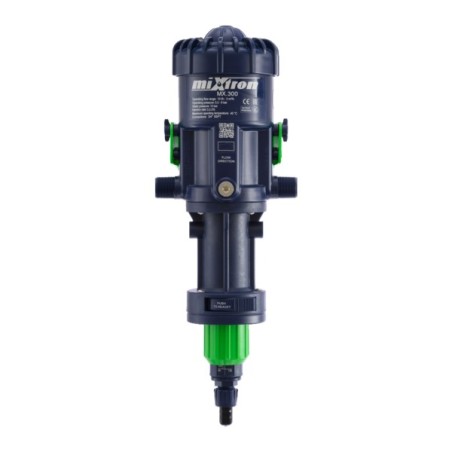

MIXTRON Dosing Pump 2500l/h 1-5% - VITON

Maximum quality in all mechanical processes, such as tool service life and correct wear, begins with calibrated lubrication and cooling in all phases. The use of our dosing pump connected to the water network, for the supply of water required for the preparation of the lubricant-coolant solution and the tank (or to the lubricating oil supply line), is the only method capable of guaranteeing a perfect and constant supply of the correctly dosed mixture at the required percentage to obtain maximum quality. No other method used for the preparation of the lubricant-coolant liquid can guarantee the same performance. * EASY AND FAST INSTALLATION * HYDRAULIC POWER SUPPLY * SIMPLE MAINTENANCE Box contents: • 1 Mixtron Dosing Pump (H 455 x L 165 x Ø 125 mm) • 1 fixing bracket • 1 reinforced suction tube of 1.5 m • 1 non-return valve and stainless steel filter • 1 user manual Technical specifications: Working pressure 0.3 - 6 bar Minimum water temperature 5 °C [41 F°] Maximum water temperature 40 °C [104 F°] Maximum suction height 4 m [13 ft] Maximum suction distance 20 m [66 ft] Connection thread ¾'' BSP Integrated mixing chamber Stainless steel AISI 316 ball inlet valve Metallic components made of stainless steel AISI 316 STANDARD * Vent plug * Fixing bracket * Adjustment nut release
