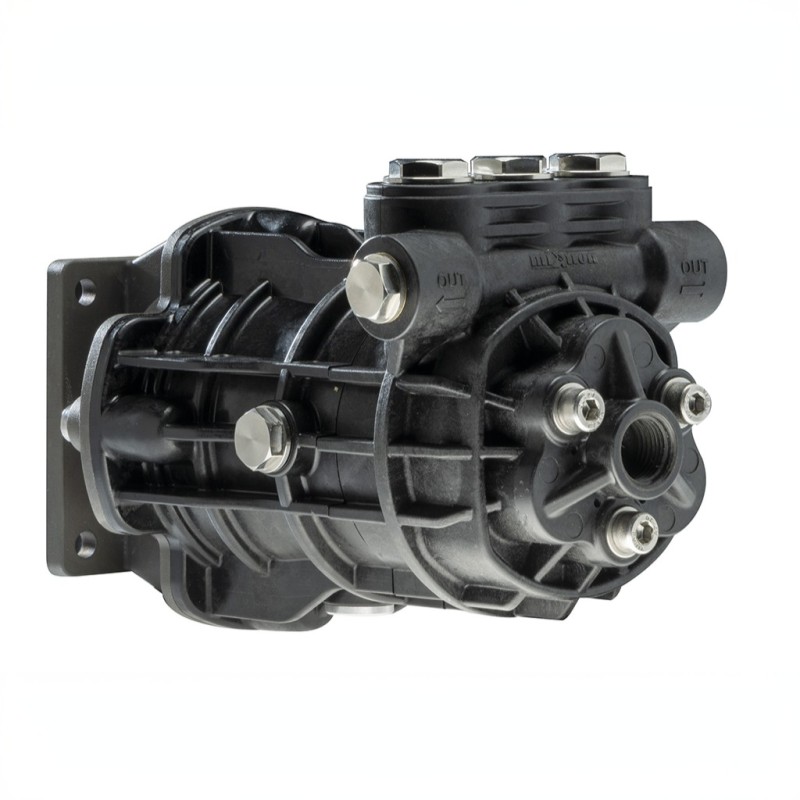

High pressure pump mod. Alpha 1.4.80.D19. P.S

High pressure pump mod. Alpha 1.4.80.D19. P.S

The high pressure pump model Alpha 1.4.80.D19. P.S is recommended for applications requiring consistency and reliability. In fact, our ALPHA series includes high pressure pumps made with a technopolymer head and body and AISI 316 steel components. These materials are highly resistant to oxidation and salt corrosion.

The stainless steel inserts also allow temperatures up to 85°. Our system features an inclined plate with 3 pistons to give the pump a smoother flow and less vibration.

The ALPHA series has the considerable advantage of being directly flanged on the shaft of the electric motor in the male version, in order to optimise the overall dimensions and to avoid the purchase of the homokinetic joint and its connecting bell. All this means that vibrations and noise are extremely low.

• Type: High pressure pump
• Flow rate: 4 l/min - 1.1 gpm - 50 Hz ; 5 l/min - 1.3 gpm - 60 Hz
• Diameter connection: 19 mm
• Operating pressure: bar 80 ; psi 1160
• RPM: 1450 - 50 Hz ; 1750 - 60 Hz
• Engine:0.6 Kw - 0.8 Hp - 50 Hz ; 0.8 Kw - 1 Hp - 60 Hz
• Weight: Kg 5, lbs 11.0
