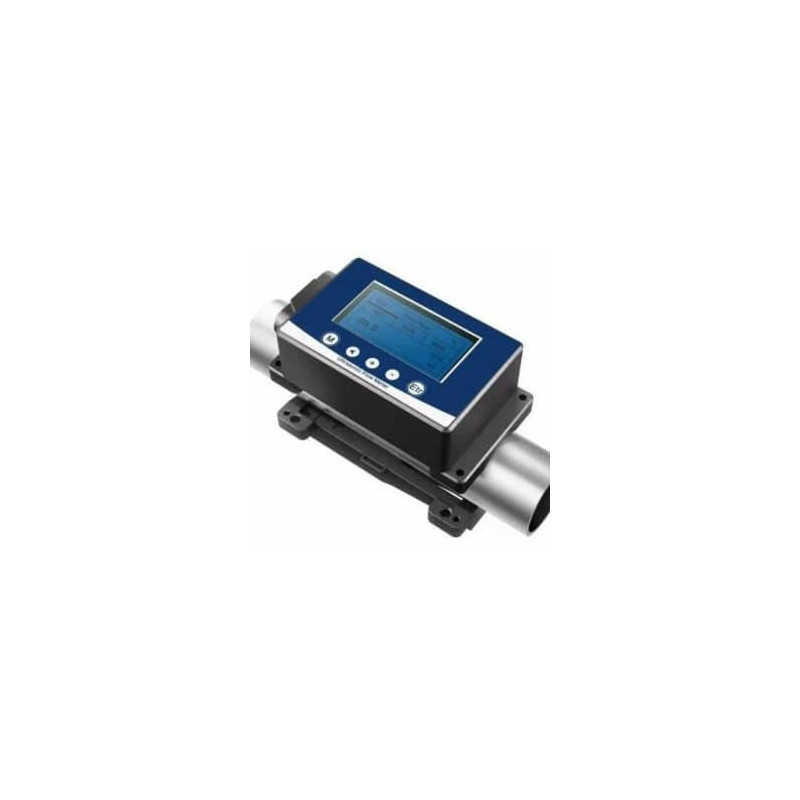

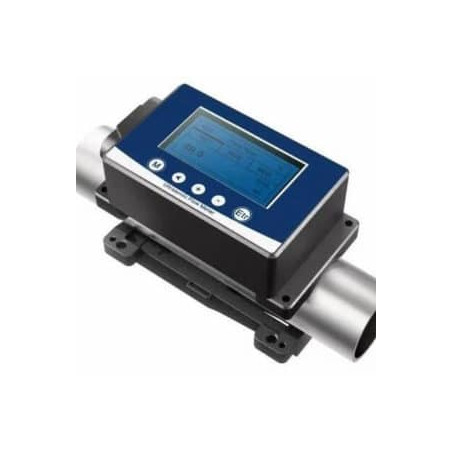

UKF-4100 DN15-DN40 non-invasive ultrasonic flowmeter

UKF-4100 non-invasive ultrasonic flowmeter

The UKF-4100 measures flow in small pipes using ultrasound and installs externally, without cutting the pipe or contacting the liquid. This avoids pressure loss and contamination risks.

Standard versions and flow ranges

Main features

• Measures water and other clean liquids without solid particles or impurities.
• Fluid velocity: 0.03-10 m/s.
• Accuracy: ±2% FSO, up to ±1% after calibration.
• Configurable 4-20 mA output; optional proportional pulse output.
• RS-485 Modbus communication.
• 10-24 VDC supply and 3 W consumption.
• Instantaneous and totalised flow display.
• IP65 protection and 2 m cable with M12 connector.

Applications

• Drinking, softened and pure water; cooling and recirculation water.
• Dosing systems, HVAC, food and beverage, and chemical processes.
• Installations where the process cannot be stopped or the pipe cut.

Selection: the price applies to standard DN15-DN40 versions. State the required nominal diameter when ordering.
