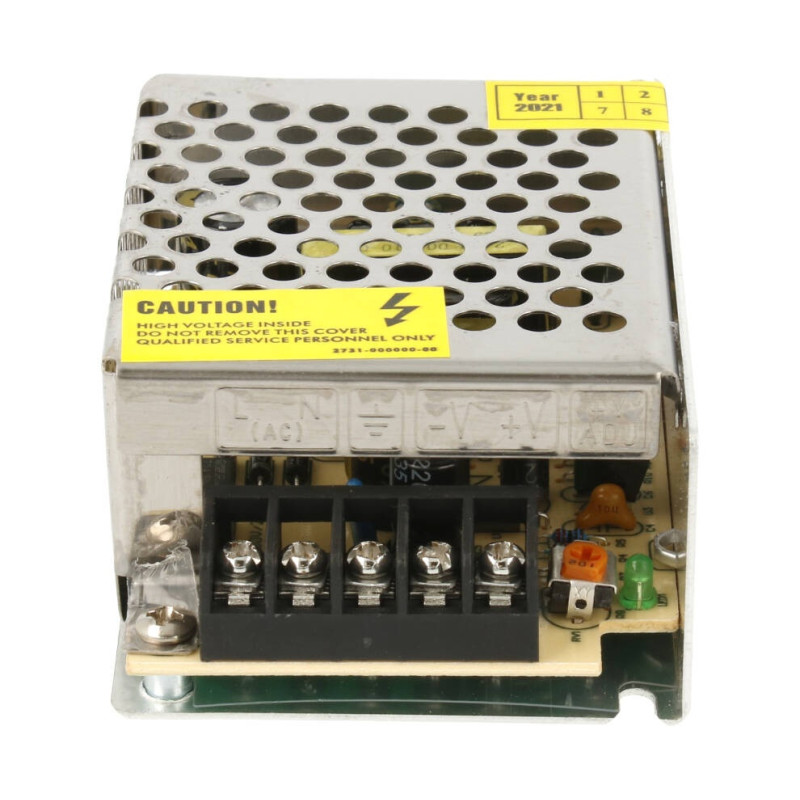

ALM302 24 VDC 24 W power supply - view 1

ALM302 24 VDC 24 W power supply for UKF-4100

€66.96tax excl.VAT incl.: €81.02

Tax excluded

ALM302 switched-mode power supply rated at 24 VDC, 1 A and 24 W, recommended by the manufacturer for the UKF-4100 flowmeter.

Quantity

Request a quote Chat on WhatsApp

Security

100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal

Fast and guaranteed delivery

We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.

Return policy

Exchange or refund guaranteed according to legal standards and for defective products.

ALM302 24 VDC 24 W power supply for UKF-4100

Switched-mode power supply selected as an accessory for the UKF-4100 ultrasonic flowmeter. It provides a regulated 24 VDC output with ample capacity for the instrument’s 3 W consumption.

UKF-4100 compatibility

The UKF-4100 accepts a 10 to 24 VDC supply and consumes 3 W. The supply’s 1 A rating is the maximum available current: the flowmeter only draws the current it requires.

Benefits

Regulated 24 VDC output adjustable from 22.8 to 25.2 V.
Overload, short-circuit and overvoltage protection.
Screw terminals for input and output connections.
Compact format for installation in a cabinet or enclosure.

Technical data

Input	100-240 VAC, 50/60 Hz
Rated output	24 VDC / 1 A
Rated power	24 W
Efficiency	82 %
Output adjustment	22.8-25.2 VDC
Connections	Screw terminals
Dimensions	84 × 58 × 32 mm
Weight	89 g
Operating temperature	-20 to +60 °C
Compliance	CE, RoHS, EN 62368-1

Safe installation

Before connecting the flowmeter, set and verify the output at 24.0 VDC or slightly below. Observe polarity. As this is an open-frame mains power supply, it must be fitted inside a suitable enclosure and installed by qualified personnel.

The ALM302 power supply is supplied. The UKF-4100 flowmeter is sold separately.
