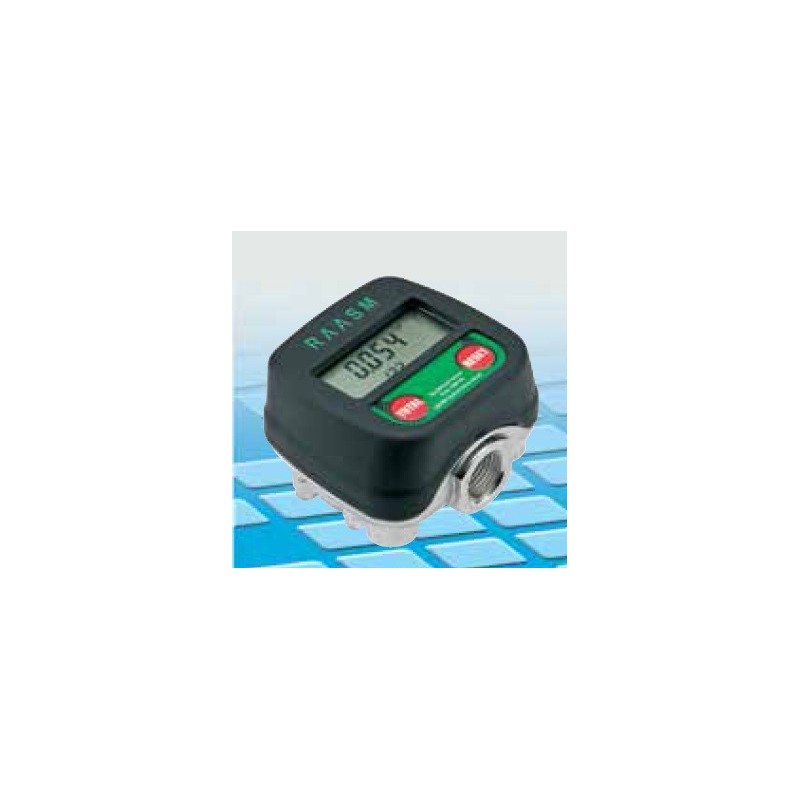

Digital litre-counter for oil, 100l/min

RAASM’s digital meters, besides gauging the liquid delivered, can show instant flow rates, provide a reset total and allow the setting of different units of measurement.  RAASM ’s digital meters are suitable for a wide variety of fluids, from low to medium to high viscosities, including lubricants, diesel fuel, antifreeze, window wash liquid and other fluids compatible with the material of the meter.

TECHNICAL FEATURES

• Sealed battery compartment assures continuous electronic contact in rugged working conditions
• Aluminium body with special coating suitable also for antifreeze and windshield washing fluid

• Robotically welded electronics board equipped with a wide LCD screen

• The use of 4 magnets provides superior control and precision measurement

• Double layer protective cover provides an air tight seal with the aluminium body

• Meter uses standard “off the shelf” two 1.5 v AAA batteries

• Oval gears made of POM or PVDF are highly resistant

• A ribbon wire connection between the buttons and the electronic board provide superior  connectivity

• Raised buttons on the membrane produce an improved operational feel

• Battery low level indicator, 5 digit resettable totalizer, 6 digit non resettable totalizer, Total may be multiplied by 10 - x 100 - x 1000,

• Unit: Litre - Gallon - Pint - Quarter , FLOW RATE indication TOTAL or RESET TOTAL,

• Precision ± 0,3 %,  • Repeatibility 0,2 % • Pressure loss < 0,5 bar at max. flow rate
