Electric Grease Pump P-207 Series
€1,383.82
Tax included
Compact and efficient electric grease pump for automatic lubrication systems. Compatible with LHL 700cc cartridges. 24V DC power, 5/8 MPa pressure, IP54 protection, CE certified. Ideal for CNC machining centres and industrial machinery. 6-month warranty.
Security
100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal
Fast and guaranteed delivery
We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.
Return policy
Exchange or refund guaranteed according to legal standards and for defective products.

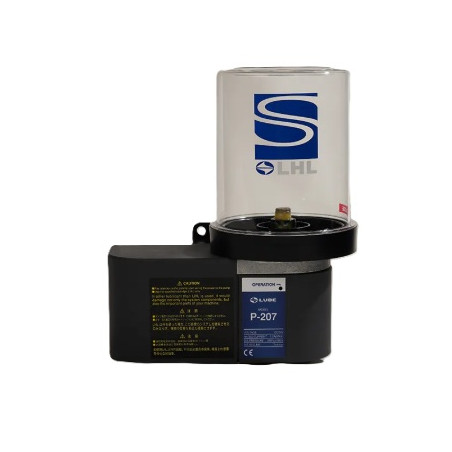

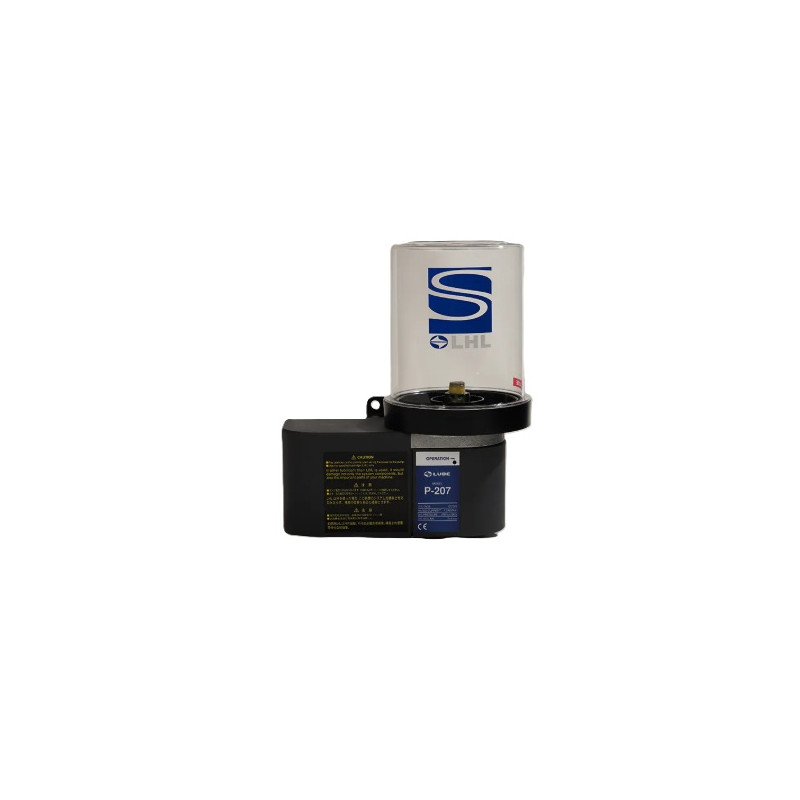

Electric Grease Pump – P-207 Series
Compact, cost-effective and highly efficient unit, specifically designed for automatic lubrication systems using original LHL grease cartridges. Its robust construction and easy installation make it an ideal solution for light industrial machinery and centralized greasing systems.
Key features
- Compact and lightweight design
- Low energy consumption (24W)
- Compatible with LHL 700cc grease cartridges
- Integrated air purge system
- Dust and water ingress protection (IP54)
- Manual override switch
- Integrated grease level sensor
- Non-flammable plastic housing (UL94-V0)
- CE certified
Technical specifications
| Power supply | 24 V DC |
| Power consumption | 24 W |
| Discharge pressure | 5 MPa / 8 MPa |
| Minimum cycle interval | 10 seconds |
| Connection method | Electrical terminals |
| Grease level sensor | Yes |
| Air purge valve | Yes |
| Cover material | UL94-V0 plastic (non-combustible) |
| Protection rating | IP54 |
| Certification | CE |
| Weight | 1.2 kg – 1.6 kg (depending on model) |
| Operating temperature | -10°C to +50°C |
| Recommended viscosity | NLGI #1 – #2 |
Applications
- Automatic lubrication systems for CNC machining centres (Makino, Mazak, etc.)
- Light industrial machinery
- Conveyors and production lines
- Construction equipment
- Electric motors and gearboxes
Maintenance
- Use only recommended grease (LHL cartridges)
- Do not use grease containing molybdenum disulfide
- Avoid lubricant contamination and do not mix grease types
- After maintenance: open purge valve and fully remove air from the system
Additional information
- Warranty: 6 months
- Installation not included
- Delivery time: 7-10 working days, subject to availability
BOM-P207
Data sheet
- Standard / Specification
- CE, IP54, UL94-V0
- Main Application
- Automatic lubrication, CNC machinery, centralized systems
- Minimum Temperature
- -10°C
- Maximum Temperature
- +50°C
- Product Type
- Electric grease pump
