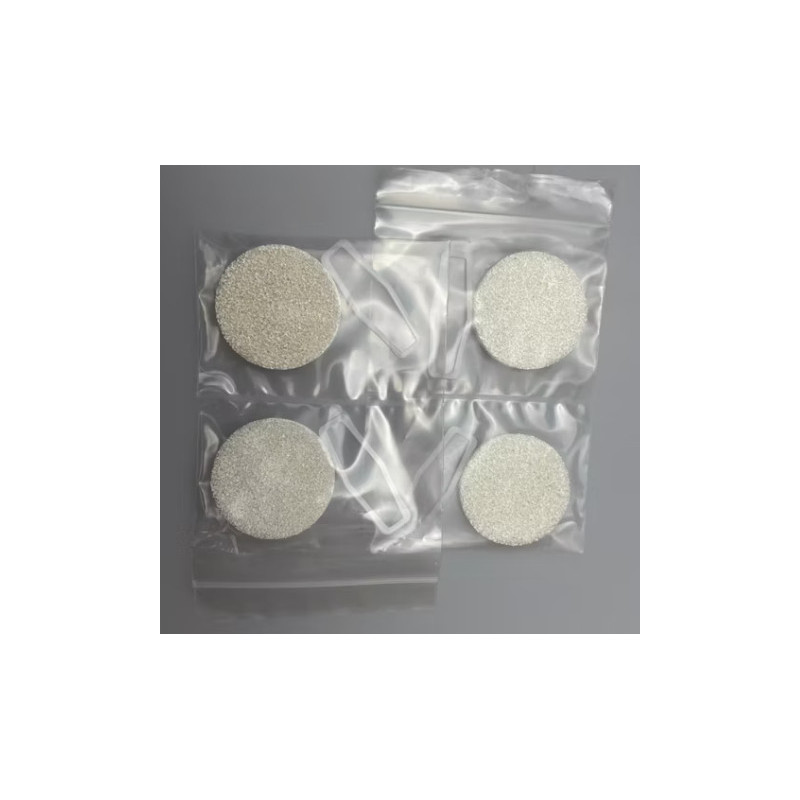

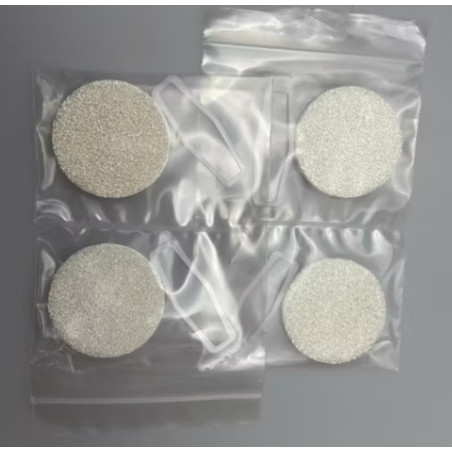

LUBE SF-11 Suction Filter, Ø41mm (pack of 5)
€107.33
Tax included
Original LUBE SF-11 suction filter (ref. 489011), Ø41.5 mm, made from polyvinyl formal (PVF) resin. Pack of 5 units. Essential consumable for LUBE automatic lubrication pumps AMZ, AMO and AMR series, used in Mazak, Makino, Okuma and other CNC machining centres.
Security
100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal
Fast and guaranteed delivery
We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.
Return policy
Exchange or refund guaranteed according to legal standards and for defective products.
LUBE SF-11 Suction Filter — Ref. 489011
The LUBE SF-11 is an original suction filter designed for automatic lubrication pumps manufactured by the Japanese brand LUBE. Installed at the oil pump suction port, it retains particles, metallic impurities and contaminants before they enter the lubrication circuit, protecting the pump's internal components and extending its service life.
Made from polyvinyl formal (PVF) resin, a highly chemical-resistant porous material compatible with mineral, synthetic and semi-synthetic oils. Its microporous structure allows optimal oil flow while maintaining excellent filtration capacity. Supplied as a pack of 5 units, ideal for scheduling preventive maintenance.
Technical specifications
| Manufacturer reference | 489011 |
| Model | SF-11 |
| Diameter | Ø41.5 mm |
| Thickness | 4.6 mm |
| Material | Polyvinyl formal (PVF) resin |
| Filtration type | Suction filter |
| Mechanical principle | Pressure filtration |
| Origin | Japan |
| Packaging | Pack of 5 units |
Compatible pumps
| LUBE AMZ-III | Automatic cycle oil lubrication pump |
| LUBE AMZ100S | Compact oil lubrication pump |
| LUBE AMO-150S-III | Oil pump with integrated 150cc reservoir |
| LUBE AMO-3DS | Multi-point oil pump |
| LUBE AMO-II-150S | Series II oil pump, 150cc |
| LUBE AMR-III-150 | Heavy-duty oil pump, 150cc |
Applications
- Preventive maintenance of CNC machining centres: Mazak, Makino, Okuma, Mori Seiki, Doosan, Haas, Hyundai Wia
- CNC lathes and turning centres with LUBE automatic lubrication
- Grinding machines, milling machines and industrial drilling equipment
- Any machinery fitted with LUBE oil pumps from the series listed above
When should the SF-11 filter be replaced?
LUBE recommends replacing the suction filter during each scheduled lubrication system service, or whenever a drop in discharge pressure or increased pump noise is detected. In high-contamination environments (cast iron machining, aluminium, etc.), a shorter replacement interval is advised.
Related filters
- SF-10 (ref. 489010): Suction filter Ø41.5 mm for MMXL-III and EX-5 pumps
- LUBE line filters (FX-1, F3D series): For in-line distribution filtration
Shipping information
- Delivery time: 7–10 working days, subject to availability
- Warranty: 6 months
- Shipping to Spain, Portugal, France and the rest of Europe
489011
Data sheet
- Lubricant Base
- PVF Resin (Polyvinyl formal)
- Capacity / Packaging
- Pack of 5 units
- Main Application
- LUBE lubrication pumps AMZ, AMO, AMR series
- Format
- Porous disc filter
- Product Type
- Suction filter for oil pump
Specific References
- MPN
- SF-11
