Cold air nozzle
€387.08
Tax included

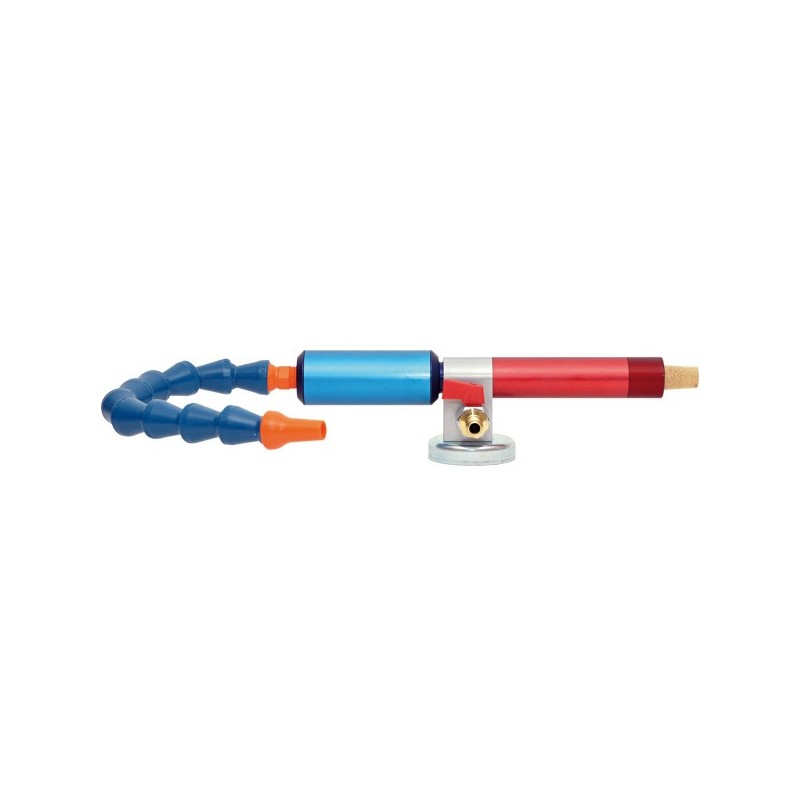

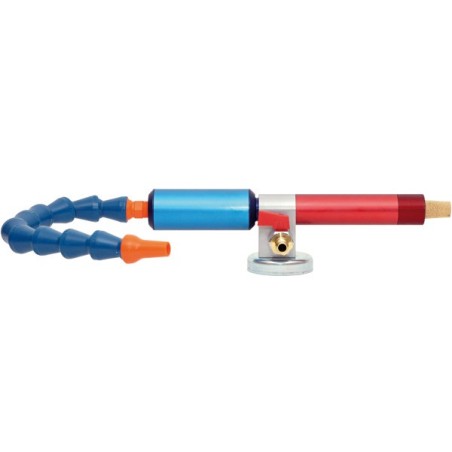

The ARIANA-Cold Air Nozzle is used for cooling locations of metal and plastic parts on machine tools and features a double function: it generates both hot and also cold air.
Security
100% secure payment. Your purchases protected with SSL and trusted methods Visa, MasterCard, PayPal
Fast and guaranteed delivery
We deliver to mainland Spain, Balearic & Canary Islands, Portugal and other countries.
Return policy
Exchange or refund guaranteed according to legal standards and for defective products.
Cold Air Nozzle
The cold air is primarily used at locations where no lubricants and cooling liquids are wanted. The Ariana cold air nozzle is also widely used in laboratories.

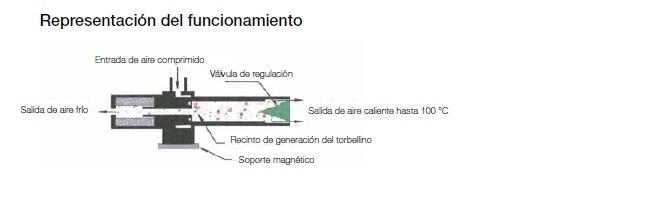

The ARIANA-Cold Air Nozzle is connected to compressed air supplies or operated with compressed air (3-8 bars), respectively. Mode of operation is based on the principle of a vortex tube, in which two opposite ro-tating air flows will be generated. At the blue component output of the internal flow as usable cold air (up to - 25°C) takes place; at the red component output of the hot air (up to 100°C) takes place. The needle valve allows adjustment of volume flow and portion of cold air.
Accessories for the Ariana cold air nozzle include the flexible ARIANA-Cool-Line-System and also a magnet plate, ball cock, grommet for quick coupling and also a sound absorber.
0331001
Specific References
- EAN13
- 8435581605634
