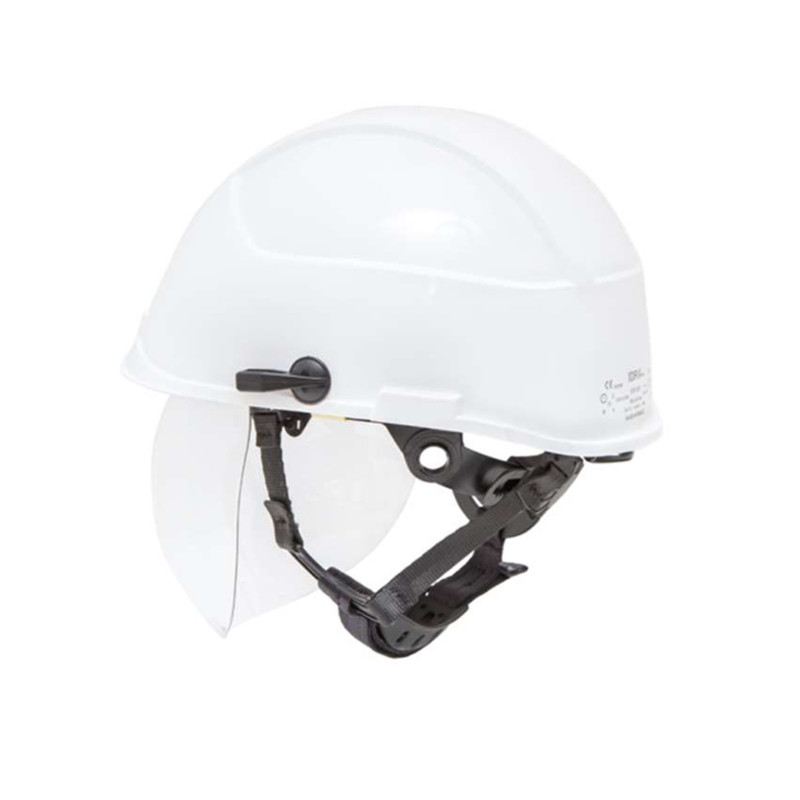

White IDRA electric helmet

Features

The IDRA helmet consists of:

• an outer shell made of injection-molded polyamide (with integrated lamp holder)
• an inner shell made of injection-molded polyamide
• a harness comprising:
  • a braided fabric cap
  • a low-density polyethylene headband, with a nape strap with closure tape, removable and adjustable from 49 to 63 cm
• an integrated polycarbonate visor with a thickness of 1.7 mm, optical class 2, anti-fog interior treatment, and anti-scratch exterior treatment.
• the helmet is factory-supplied with a 4-point chinstrap with chin cup

Visor dimensions: 310 x 170 mm

Weight: 620 g

Service life: helmet + visor: 48 months

Color: white

Certifications and tests

The protective helmet meets the requirements of the NF EN 397+A1: 2013 standard, as well as the following optional requirements:

• resistance to very low temperatures, -20 °C

• electrical insulation, symbol 440V~

The protective helmet meets the requirements of the NF EN 50365: 2002 standard:

• dielectric test at 5000 V and dielectric strength test at 10,000 V, double triangle symbol - class 0

The protective helmet meets the requirements of PREN 50365; the corresponding tests are listed below:

• dielectric test at 20,000 V and dielectric strength test at 30,000 V.

The visor meets the requirements of the European standard NF EN 166: 2002, whose main tests are listed below:

• optical powers of eye protection, optical class 2

• transmission factor, ultraviolet protection filter: step number: 2-1.2, according to NF EN 170: 2003

• protection against high-speed particles, medium energy impact 120 m/s, symbol B

• protection against drops and splashes of liquids, symbol 3
