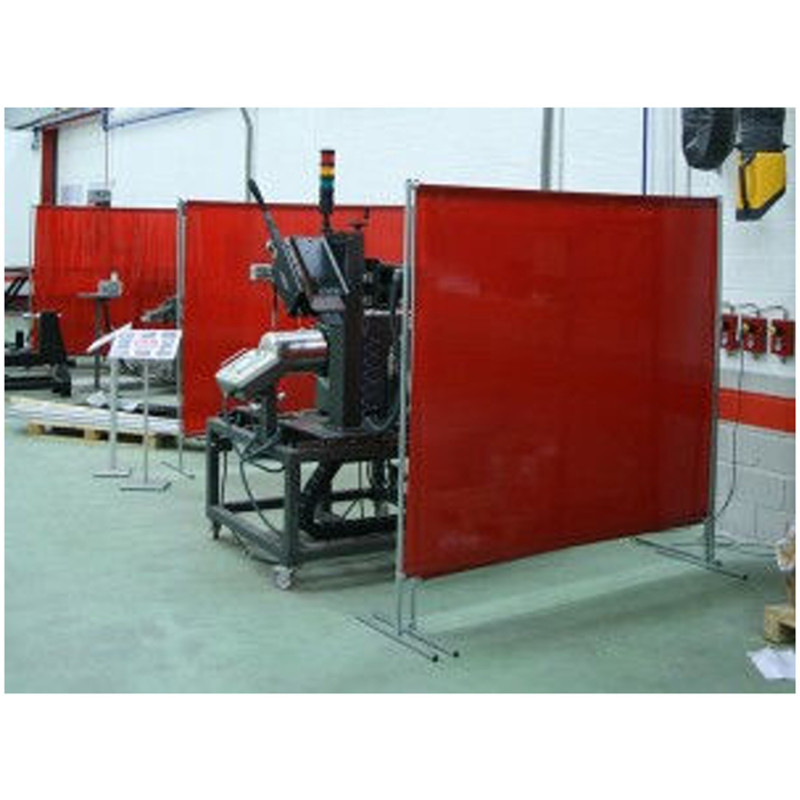

WELDING SCREEN, RED, 1 panel, 1,400mm x 2,000mm

COMPOSITION

• For basic steel welding screen
• Carbon steel tubes, galvanized.
• Does not contain toxic parts.
• Does not contain flammable parts.
• Does not contain electrical parts
• USE AND HANDLING

The surface and the galvanized curtain will be damaged by open fire or intense heat. There is a possibility that the screen may not be stable due to uneven or rough ground conditions.

Oil or grease contamination has no negative effects on the condition of the screens.

MAINTENANCE AND SAFETY

• The bolts must be periodically checked in the free assembly.
• The beams are only applicable for the use of curtains, not for heavy products that overload the tubes.
• Not recommended for lifting operations.

 FEATURES

Made of longitudinally welded carbon steel tubes. The screen can be moved freely in any direction by hand. The screen will be supplied in loose parts, packed in a solid box, and must be fixed with metric fasteners included with basic tools.

DESIGN

The distance between the ground level and the top beam is 197 cm, total width of 140 cm.

For a stable construction, both foot profiles have a length of 60 cm.
