Duo mixer

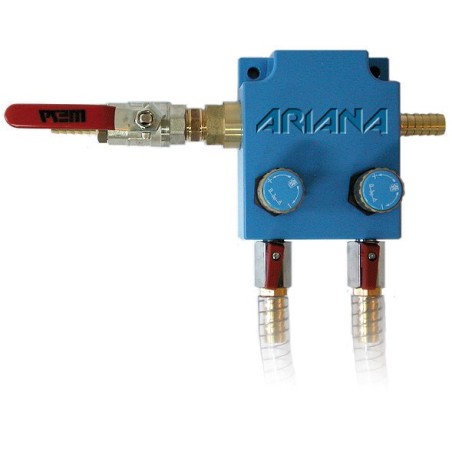

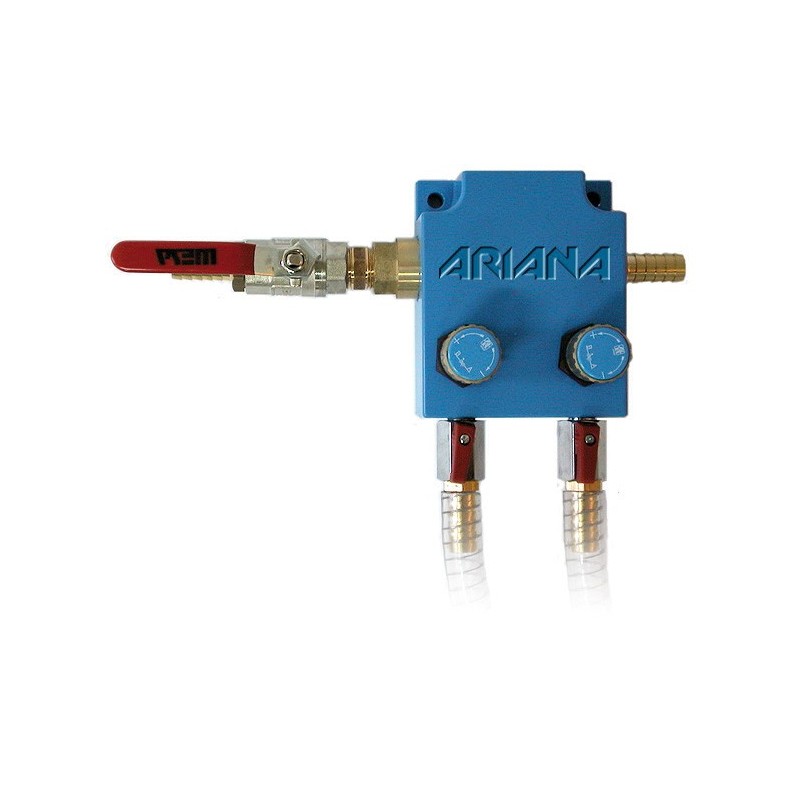

Duo Mixing Unit

A mixing unit is essential for  mixing emulsions and grinding solutions. By means of two needle valves,  the ARIANA Duo Mixing Unit permits fast and precise adjustment of the  emulsion concentration of liquid coolants and lubricants. In this way,  it is pos-sible to produce liquids using optimum concentrations.
The  Duo Mixing Unit has one water inlet and two concentrate inlets. Once  the optimum mixing ratio has been determined, the user can always rely  on this ratio being the case. Of course, it is possible to change the  mixing ratio at any time. For safety reasons, a return valve is  installed on the water inlet side to prevent any suctioning into the  potable water system.
Unlike the Mono Mixing Unit, the Duo Mixing  Unit has two concentrate inlets. This makes it possible to mix two  different concentrates without having to reposition the mixing unit.

Technical data:

• Water inlet 1/2"
• Mixed liquid outlet 1/2"
• Concentrate inlet 3/8"
• Mixing volume (approx.) 350 l/h
